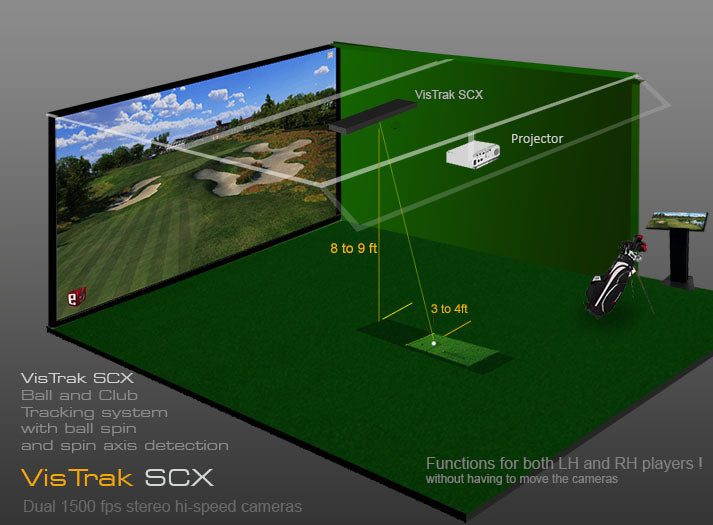

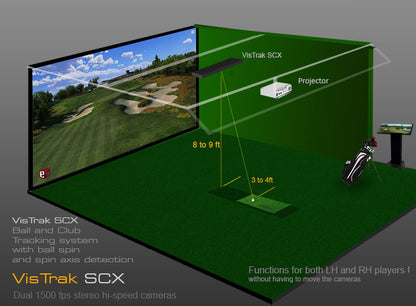

GSA Golf VisTrak SCX IR Pro-- Ceiling-Mounted Golf Launch Monitor

Take your home golf game to the next level with the VisTrak SCX IR Pro, one of the most advanced yet affordable ceiling-mounted golf simulator tracking systems on the market. Built by GSA Golf, the SCX IR uses a dual high-speed stereo camera system with non-visible infrared lighting to capture every detail of your ball and club at impact — with fully user-verifiable data you can watch in frame-by-frame post-shot video playback. Whether you're dialing in your swing, analyzing ball flight, or playing a full round on your favorite course, the SCX IR delivers professional-grade tracking at a home-friendly price.

Key Features

• Dual high-speed stereo cameras (up to 1,500 fps) for precise ball and club tracking from overhead
• Non-visible infrared (IR) lighting for clean, glare-free image capture
• Laser-precision factory calibration — cameras are laser-aligned before shipping for best accuracy
• Fully user-verifiable data — see real launch angle, ball path, spin, and club face angle in slow-motion playback
• Post-shot video playback after every shot, including a dedicated ball-spin video
• Acrylic light-bar "ball detected / ready" indicator for real-time feedback
• Detects full shots, chips, and putts with complete data capture
• Works for both right- and left-handed players
• Compatible with all major sim software: GSPro, E6 Connect, The Golf Club (TGC), ProX, Creative Golf 3D, and GSA software

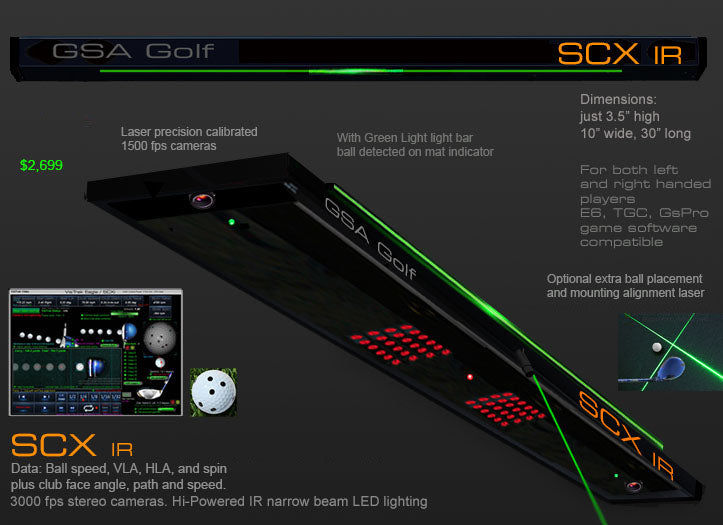

• Lightweight design (unit weighs only ~4 lbs; approx. 3.5"H × 10"W × 30"L)
• 1 FREE 18-hole golf course included

Data Measured

• Ball Speed
• Ball Path (HLA)
• Ball Launch Angle (VLA)
• Club Speed
• Club Path
• Club Face Angle

Calculated Ball Spin and Ball Axis

What's Included

• 2 High-Speed Cameras
• 4 LED Zoomable Track Lights
• GSA Software Suite
• 1 Free Golf Course

Please Note

Before purchasing one of our high-speed camera tracking systems (i.e. SCX, Eagle, EVi or LX systems) please be aware of the following:

1. The systems are not plug-n-play

Systems require some setup and installation.

While most have no problem following the installation instructions, some may find them a little overwhelming.

We are here to help though with free email support.

Remote access support is also available for a $49 fee

We guarantee all systems will function

2. Systems are not wireless

All systems require a USB3 cable connection to the PC

3. Ball has to be played inline with the center of the unit

i.e. you can't play the ball offset to one or the other side of the unit

4. Systems are generally not suitable for commercial use

i.e. commercial indoor golf facilities and/or Pro Golf instructors

This is primarily due to the additional amount of support required for these users which we can't supply.

Systems are primarily intended for private home use only.

While some do use the systems for commercial use, customer should be aware that GSA Golf does not take any responsibility for any loss of business

due to systems not functioning correctly. Use of the of the systems in a commercial environment is solely at the user's risk.

5. Accuracy

As all measured data (ball and club speeds, VLA and spin rates etc) are user adjustable,

accuracy will depend on these adjustments.

However, every effort is made to ensure that the default adjustment settings produce results as accurate as possible.
