GSA Golf VisTrak EVi Launch Monitor

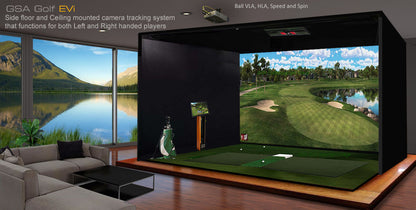

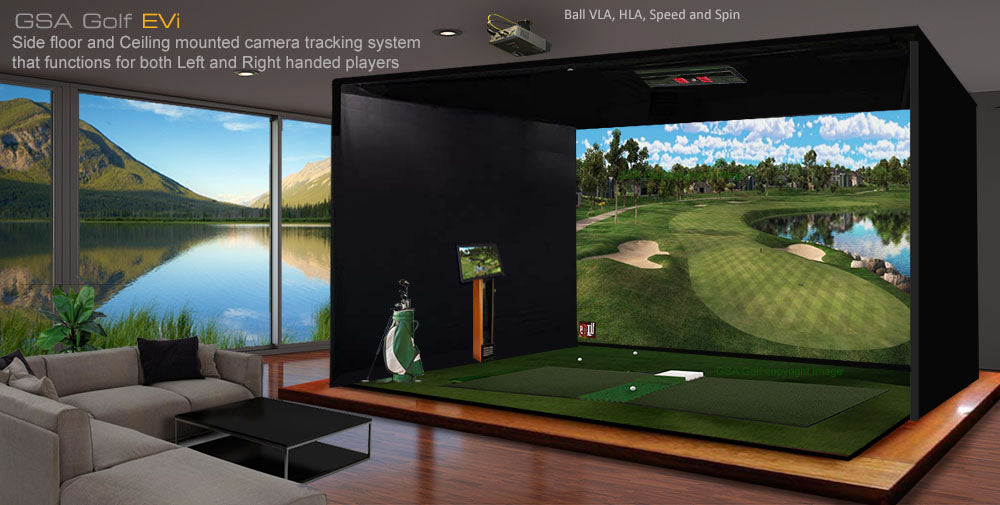

The VisTrak EVi Launch Monitor is GSA Golf’s most accurate and comprehensive camera tracking system, designed to give golfers detailed shot feedback through a powerful dual-camera setup. The system combines an overhead camera with a side-mounted Vcam, capturing each shot from both top and side views. After every swing, users can review dual 32-frame high-speed playback videos, making it easier to see what happened at impact and better understand ball flight, club delivery, and contact quality.

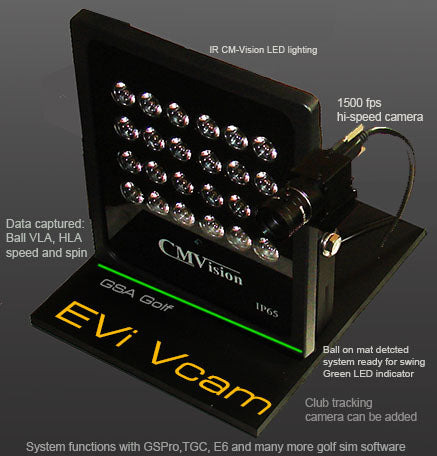

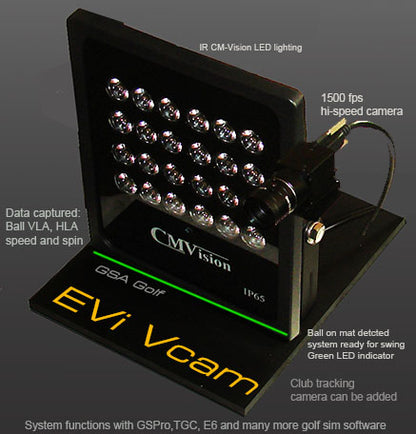

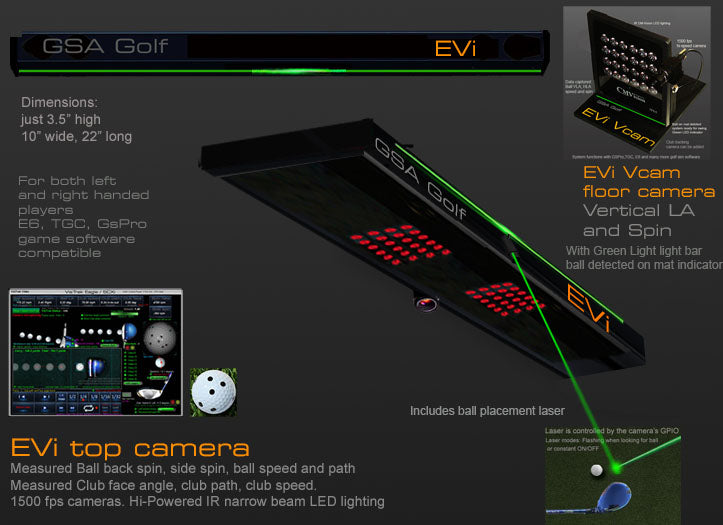

The overhead camera measures key ball and club data, including ball speed and path, club face angle, club speed, and club path. The side camera adds precise vertical launch angle measurement and can measure full 360-degree ball spin using the ball’s logo when positioned close to the ball. It also shows the club’s angle of attack and where contact occurred on the ball, helping identify fat, thin, or ideal strikes.

The EVi supports putting as well, detecting putts and capturing putting data. Its dual high-speed cameras run at 800 to 1500 fps, providing slow-motion swing and shot playback after every shot. The system includes flexible layout options, with far and close configurations, and both near and far lenses supplied for the floor-mounted Vcam.

Additional features include a laser ball placement indicator that confirms when the ball is detected and ready, optional club markings for more precise club tracking, and compatibility with popular simulator software including GSPro, TGC, E6 Connect, Creative Golf 3D, and GSA Golf software.

Please Note

Before purchasing one of our high-speed camera tracking systems (i.e. SCX, Eagle, EVi or LX systems)

please be aware of the following:

1. The systems are not plug-n-play

Systems require some setup and installation.

While most have no problem following the installation instructions, some may find them a little overwhelming.

We are here to help though with free email support.

Remote access support is also available for a $49 fee

We guarantee all systems will function

2. Systems are not wireless

All systems require a USB3 cable connection to the PC

3. Ball has to be played inline with the center of the unit

i.e. you can't play the ball offset to one or the other side of the unit

4. Systems are generally not suitable for commercial use

i.e. commercial indoor golf facilities and/or Pro Golf instructors

This is primarily due to the additional amount of support required for these users which we can't supply.

Systems are primarily intended for private home use only.

While some do use the systems for commercial use, customer should be aware that GSA Golf does not take any responsibility for any loss of business

due to systems not functioning correctly. Use of the of the systems in a commercial environment is solely at the user's risk.

5. Accuracy

As all measured data (ball and club speeds, VLA and spin rates etc) are user adjustable,

accuracy will depend on these adjustments.

However, every effort is made to ensure that the default adjustment settings produce results as accurate as possible.
